E324C/D E322C 325B L E325C E329D Valve GP-Travel Counterbalance
Complete travel counterbalance valve assembly compatible with E324C/D, E322C, 325B L, E325C, E329D, and E330D2 excavator models. Part of motor and mounting group components 333-2908 and 378-9568 drive GP-final assemblies.
Product Overview
This valve GP-travel counterbalance assembly (334-9988) serves as an essential component in excavator swing hydraulic systems, ensuring safe and reliable operation across multiple excavator models.
Safety Features
The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.
- One-way valve design ensures hydraulic oil flows in only one direction
- Prevents motor reversal due to external forces or hydraulic fluctuations
This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.
Product Specifications
| Model |
E324C/D / E322C / 325B L / E325C / E329D / E330D2 |
| Category |
Excavator Swing Hydraulic Motor |
| Brand |
TGFQ |
| Part Numbers |
107-6553 / 134-7130 / 137-3718 |
| Packing |
Wooden case |
| Delivery Time |
1-3 days after payment confirmation |
| Shipping Methods |
By Sea, Air, or Express |
Quality Assurance
Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.
Hydraulic Motor Applications
Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.
Swing Brake Operation
The swing brake features a multi-disc and plate assembly located in the first stage planetary gear. This spring-applied, hydraulically-released system functions as a parking brake and is not designed for cyclic service braking. Discs and plates are lubricated by the release signal oil for optimal performance and longevity.

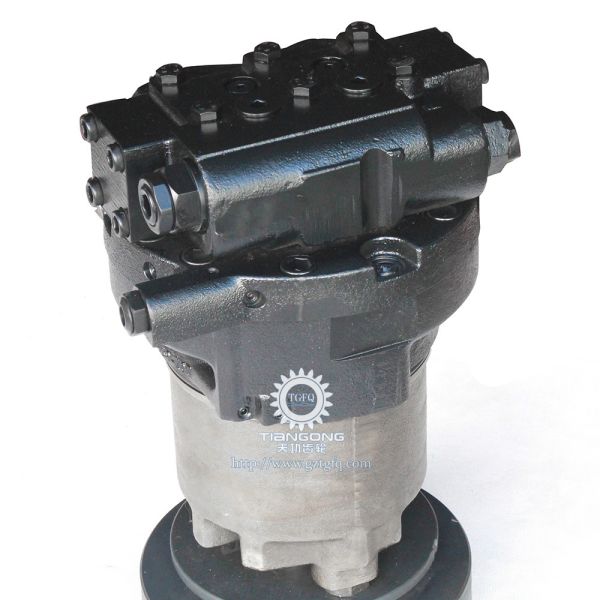

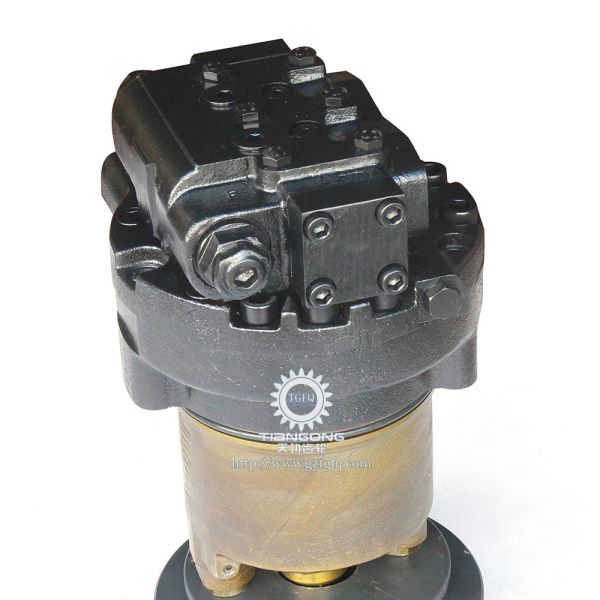

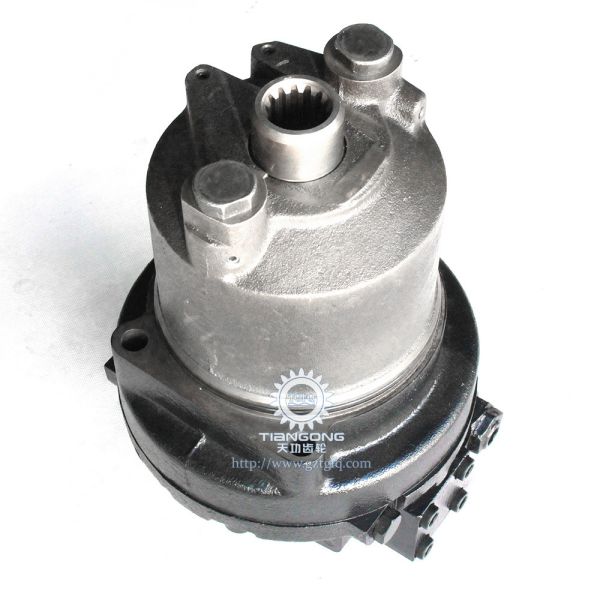

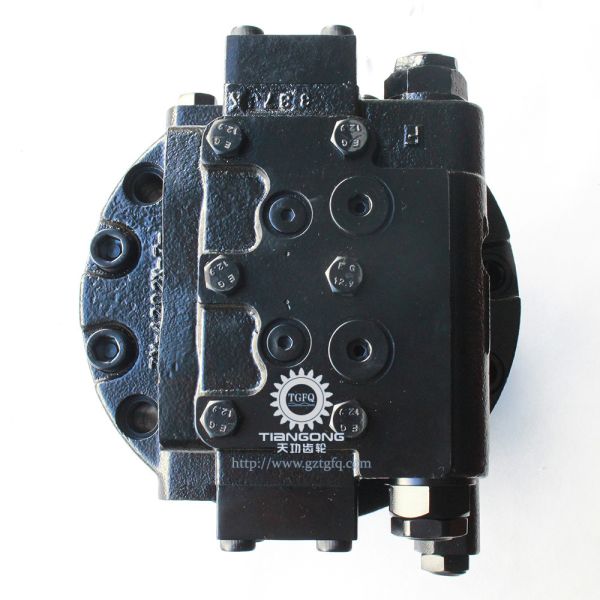

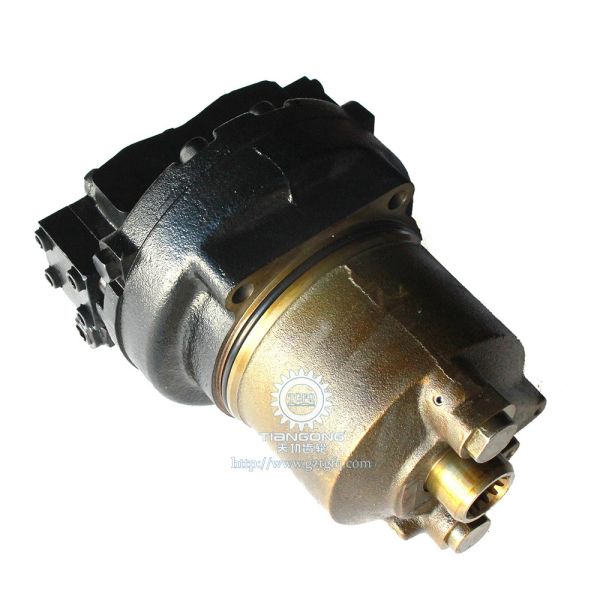

Product Images
Travel Motor Parts Breakdown
| Position |
Part Number |
Part Name |
Quantity |
| 1 |
209-5894 |
Shaft |
1 |
| 2 |
087-4743 |
Stop |
2 |
| 3 |
094-1399 |
Ring-Retaining |
1 |
| 4 |
7Y-4212 |
Bearing |
1 |
| 5 |
209-6049 |
Piston |
2 |
| 6 |
107-6969 |
Body |
1 |
| 7 |
122-5114 |
Guide-Ball |
1 |
| 8 |
209-5909 |
Plate-Cam |
1 |
| 9 |
147-5860 |
Piston AS |
1 |
| 10 |
209-5991 |
Barrel AS |
1 |
| 11 |
107-6954 |
Plate-Friction |
4 |
| 12 |
107-6955 |
Plate-Separator |
5 |
| 13 |
107-6972 |
Guide-Piston |
1 |
| 14 |
107-6971 |
Piston-Brake |
1 |
| 15 |
107-6970 |
Head |
1 |
| 16 |
8T-4944 |
Bolt-Socket Head (M16X2X40-MM) |
10 |
| 17 |
107-6976 |
Shim (1.2-MM Thk) |
1 |
| 18 |
107-6977 |
Shim (1.4-MM Thk) |
1 |
| 19 |
107-6978 |
Shim (1.6-MM Thk) |
1 |
| 20 |
107-6979 |
Shim (1.8-MM Thk) |
1 |
| 21 |
107-6980 |
Shim (1-MM Thk) |
1 |
| 22 |
107-6981 |
Shim (0.8-MM Thk) |
1 |
| 23 |
096-5916 |
Seat |
2 |
| 24 |
2D-6642 |
Ball |
2 |
| 25 |
095-1572 |
Seal-O-Ring |
2 |
| 26 |
096-5919 |
Ring-Backup |
2 |
| 27 |
096-5915 |
Retainer |
2 |
| 28 |
096-4003 |
Set-Bearing |
1 |
| 29 |
7Y-4234 |
Race-Needle Roller |
1 |
| 30 |
095-1585 |
Seal-O-Ring |
1 |
| 31 |
137-3723 |
Valve |
1 |
| 32 |
096-1519 |
Seat |
1 |
| 33 |
095-7380 |
Spring |
1 |
| 34 |
137-3708 |
Retainer |
1 |
| 35 |
094-1875 |
Dowel |
1 |
Warehouse & Inventory Capacity
Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.
Frequently Asked Questions
Can I order a sample for testing first?
Yes, we welcome sample orders for testing and evaluation.
How do I place an order?
Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.
Do you have your own factory?
Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
